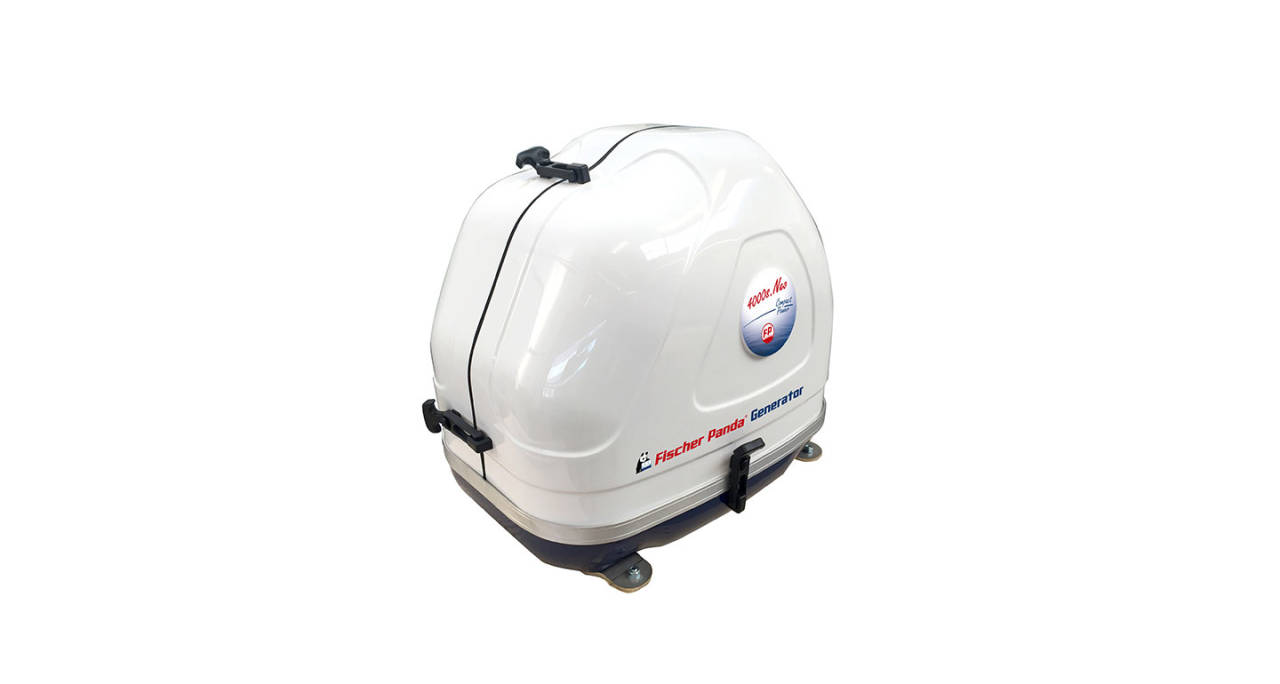

- Panda 4000s.Neo PMS
Description
Panda Marine Standard (PMS) diesel generators with dual circuit cooling (seawater cooling with heat exchanger) and "wet exhaust". 50 Hz 3000 rpm in three versions:
- HP1 (single phase 230V)
- HP 3 (three phase 3 x 400V)
- DVS (combined windings - 230V and 400 V).
General Technical Data
Model: Panda 4000s.Neo PMS
Generator Type: Generators with regulated speed (3000 rpm 50 Hz)
- Brushless
- No signal noise
- No rotating coils or diodes
- Precise control
- High protection rating
- Perfect sine wave
- Short-circuit stability
- Water-cooled
- Overload protection
Generator Family: 4000s.Neo
Generator Version: PMS
- Suitable for internal installation
- Low ambient temperatures
- External control panel with cable
- Dual circuit cooling
Article number: 0014668
Area of Application: Marine Generator (M)
Frequency [Hz]: 50
Generator manufacturer: Fischer Panda GmbH
Isolation class of windings: H
Nominal Speed [rpm]: 3000 rpm
Voltage Regulation: NO
Electrical Alternator
Daten Winding (Single Phase Version) - Standard version
Nominal Voltage in Volt: 230
Nominal Performance in kW(1): 3.40
Nominal Performance in kVA(1): 4.0
Continuous Performance in kW(1): 3
Continuous Performance in kVA(1): 3.6
Number of Phases: 1
Frequency [Hz]: 50
All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.
Engine Data
Engine Manufacturer: Fischer Panda GmbH (FP)
Engine Type: FPE320
No. Cylinders: 1
Displacement [cm3]: 309
Starter System: 12V
PDF download
