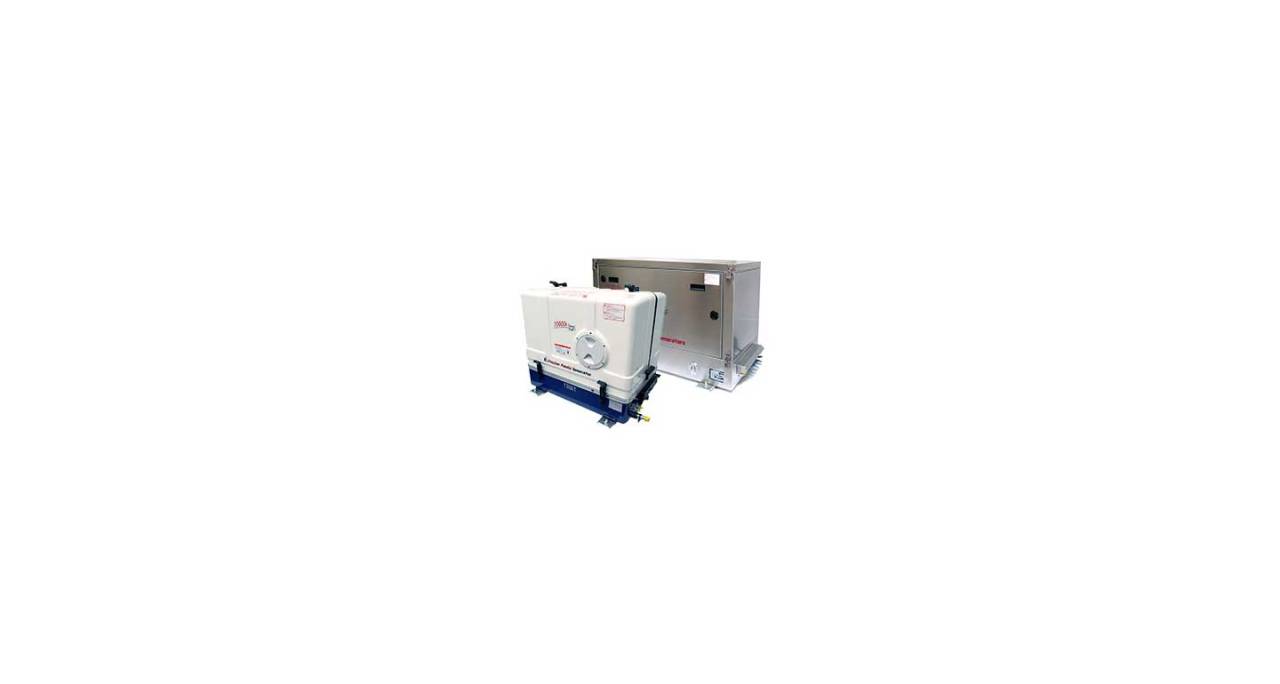

Panda 4k PMS

Generators

Description

AC Marine Generators 60 Hz / 3600 rpm (PMS)


General Technical Data

Model: Panda 30 ICx PMS

Generator Type: Basic Line - Panda Standard Asynchronous (60 Hz)

Generator Family: 4k

  • external 12V fuel pump

Generator Version: PMS

  • Suitable for internal installation
  • Low ambient temperatures
  • External control panel with cable
  • Dual circuit cooling

Article number: 0000161
Additional Features: 12V/10A Alternator for charging the starter battery

Area of Application: Marine Generator (M)
Frequency [Hz]: 60
Generator manufacturer: Fischer Panda GmbH
Isolation class of windings: H
Nominal Speed [rpm]: 3600 rpm
Voltage Regulation: None

Electrical Alternator

Single Phase Winding - Standard version

Alternator Type: HP1
Nominal Voltage in Volt: 120
Nominal Performance in kW(1): 4.70
Nominal Performance in kVA(1): 4.7
Continuous Performance in kW(1): 4.2
Continuous Performance in kVA(1): 4.2
Number of Phases: 1
Frequency [Hz]: 60

up to Panda 15000 / 12-4 cosPhi 0,85 for short take-off power to inductive loads, otherwise cosPhi1
from Panda 18 /17-4 on cosPhi 0,85 optional startup performance with compensation or starting current boost, otherwise cosPhi1

All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.

Engine Data

Engine Manufacturer: Kubota (KU)
Engine Type: Z482
No. Cylinders: 2
Displacement [cm3]: 479
Starter System: 12V (24V Optional)
