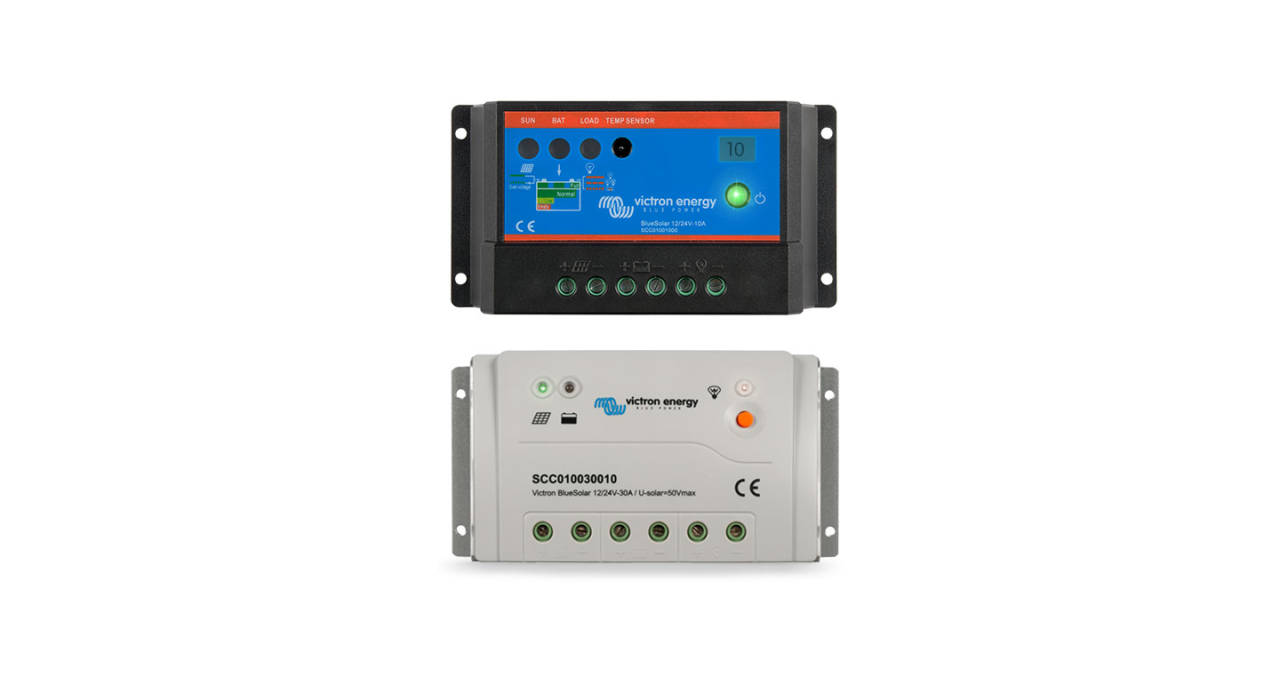

BlueSolar PWM

Description

BlueSolar PWM-Pro

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.

• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.

BlueSolar PWM-Light

• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details

Models: 12/24/48 Volt
