Busbars

Description

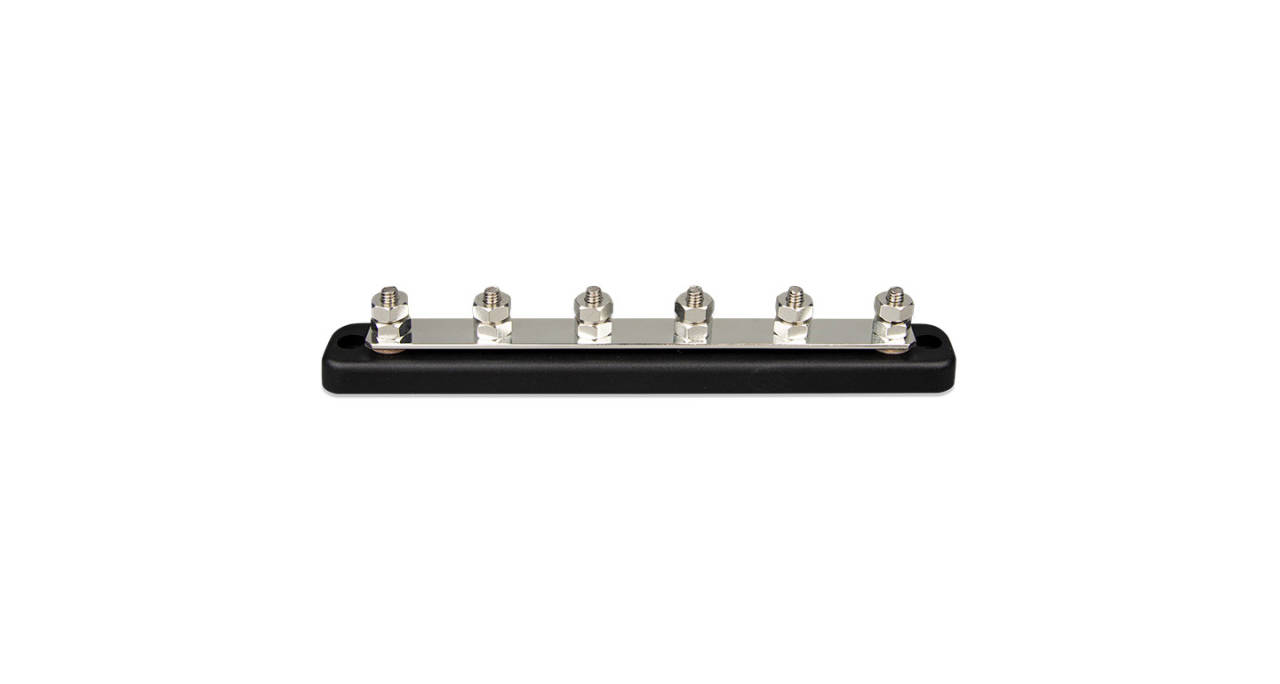

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

150A / 70V - 4 high current connections
150A / 70V - 6 high current connections
250A / 70V - 4 high current connections
600A / 70V - 4 high current connections and 8 low current connections
600A / 70V - 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.

Datasheet

Datasheet

Busbar 150 A

Busbar 250 A

Busbar 600 A

Dual terminal stud M8
