Description

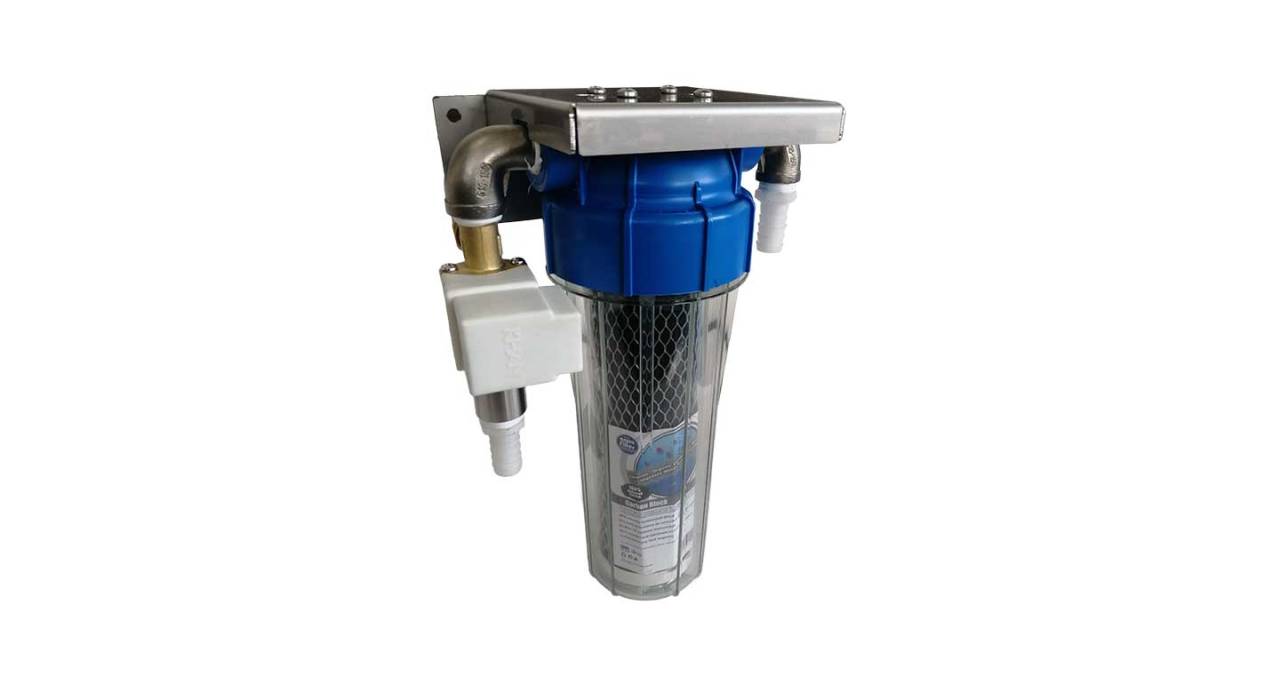

12 / 24 W MARINE WATERMAKERS
AN – 25 Product Specifications
Power Requirements: 9 amps @ 12 VDC; 4,5 amps @ 24 VDC*
Rate of Water Production: 25 liters/hr. (6.6 U.S. gal./hr) ±15% at 13.8 VDC
Feed Water Flow Rate: 250 liters/hr. (66 U.S. gal./hr)
Reverse Osmosis performance varies with the feed water temperature. The rated performance is tested at 26°C / 80°F water temperature at a salinity of 33g/ltr.
Salt Rejection: min. 99.5%
Product Water TDS Range: less than 500ppm TDS
Salinity Range: up to 50,000ppm TDS (NaCl)
PH Range: 4 – 11
Chlorine Tolerance: 1000ppm hours
Operating Pressure: 55 bar (800psi)
AN – 50 Product Specifications
Power Requirements: 18 amps @ 12 VDC; 9 amps @ 24 VDC*
Rate of Water Production: 50 liters/hr. (13,2 U.S. gal./hr) ±15% at 13.8 VDC
Feed Water Flow Rate: 500 liters/hr. (132 U.S. gal./hr)
Reverse Osmosis performance varies with the feed water temperature. The rated performance is tested at 26°C / 80°F water temperature at a salinity of 33g/ltr.
Salt Rejection: min. 99.5%
Product Water TDS Range: less than 500ppm TDS
Salinity Range: up to 50,000ppm TDS (NaCl)
PH Range: 4 – 11
Chlorine Tolerance: 1000ppm hours
Operating Pressure: 55 bar (800psi)
