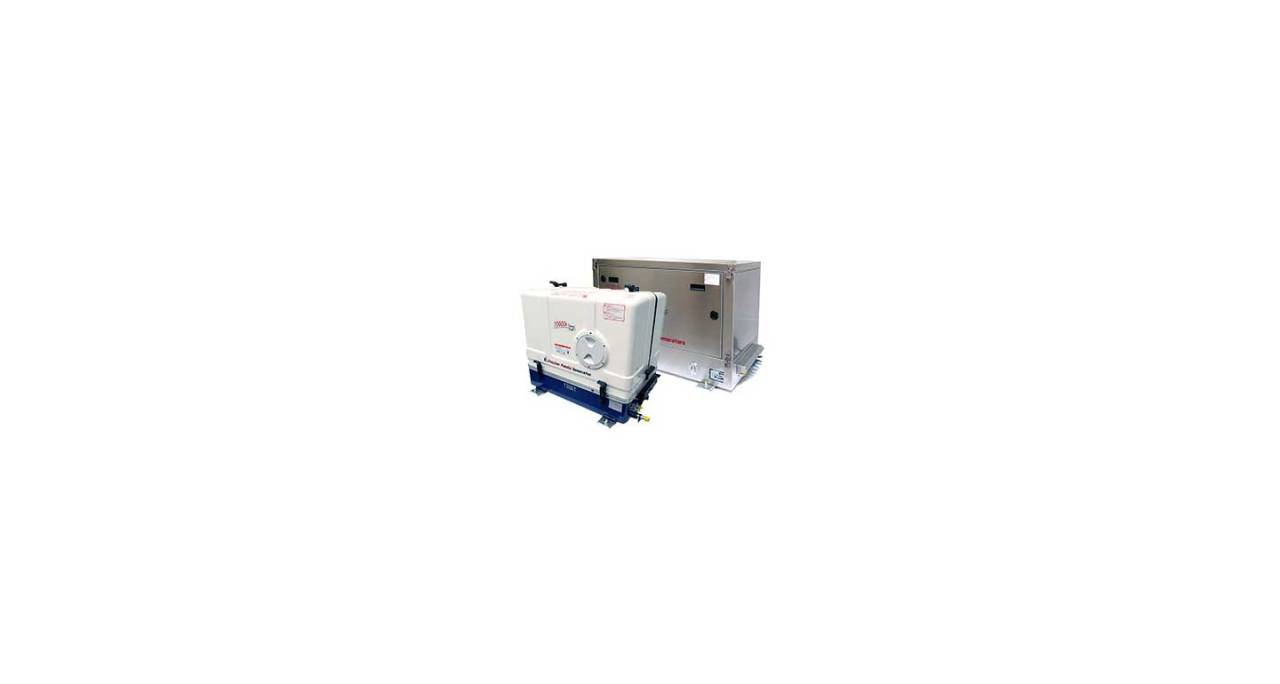

Panda 8 Mini PMS

General Technical Data

Model: Panda 8 Mini PMS

Generator Type: Basic Line - Panda Standard Asynchronous (60 Hz)

Generator Family: 8 Mini

• external 12V fuel pump

Generator Version: PMS

• Suitable for internal installation
• Low ambient temperatures
• External control panel with cable
• Dual circuit cooling

Article number: 0014872
Additional Features: 12V/10A Alternator for charging the starter battery

Area of Application: Marine Generator (M)
Frequency [Hz]: 60
Generator manufacturer: Fischer Panda GmbH
Isolation class of windings: H
Nominal Speed [rpm]: 3600 rpm
Voltage Regulation: VCS
Voltage Tolerance with VCS (up to 80% Performance): ± 3V

Electrical Alternator

Single Phase Winding - Standard version

Alternator Type: HP1
Nominal Voltage in Volt: 120
Nominal Performance in kW⁽¹⁾: 7.50
Nominal Performance in kVA⁽¹⁾: 7.50
Continuous Performance in kW⁽¹⁾: 6.7
Continuous Performance in kVA⁽¹⁾: 6.8
Number of Phases: 1
Frequency [Hz]: 60

up to Panda 15000 / 12-4 cosPhi 0,85 for short take-off power to inductive loads, otherwise cosPhi1
from Panda 18 /17-4 on cosPhi 0,85 optional startup performance with compensation or starting current boost, otherwise cosPhi1

All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.

Engine Data

Engine Manufacturer: Kubota (KU)
Engine Type: Z482
No. Cylinders: 2
Displacement [cm³]: 479
Starter System: 12V (24V Optional)
