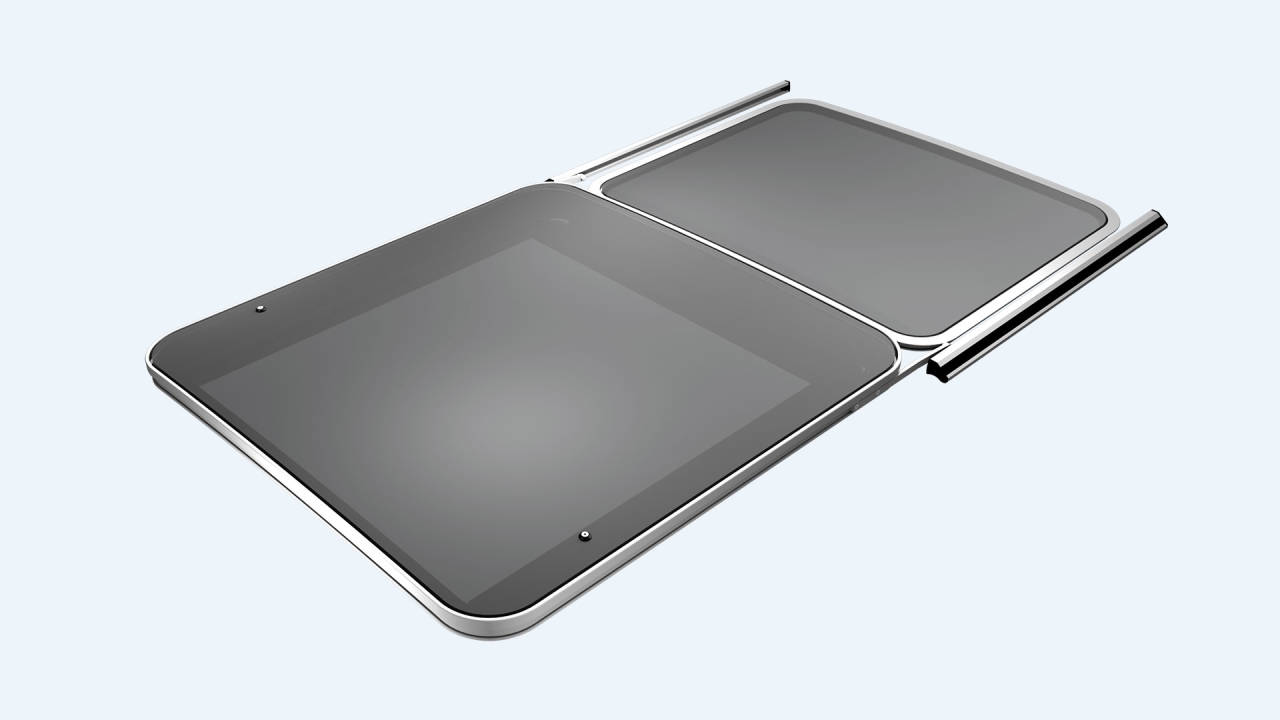

60-series

Home
Categories
Roof
60-series

Description

The pre-tested and already assembled sliding roof opening is ready for installation and is a very simple solution that reduces costs for the shipbuilder. This series also offers a number of customization options for a perfect fit.

Possibilities

Top-mounted or flush-integrated

Top-mounted

watertight closure
very large opening
smooth sliding mechanism
easy to install
fits the design of the hatch
possible upgrade

Flush-integrated

possibility of leveling the deck and sliding panel
rear rails placed completely on the side of the roof
watertight closure
very large opening
smooth sliding mechanism

Dimensions and curvature

Roof without cross beam:
max. length: 1.100 mm
max. width: 1.100 mm
curvature angle : 80 mm
min. transverse curvature: 7.500 mm

Roof with transverse beam in sliding direction:
max. length: 1.100 mm
max. width: 1.800 mm
curvature angle: 80 mm
min. transverse curvature: 7.500 mm

Roof with transverse beam perpendicular to the sliding direction::
max. length: 1.500 mm
max. width: 1.100 mm
curvature angle: 80 mm
min. transverse curvature: 7.500 mm

Types of panels and frames

Panel

plexiglas (PMMA)/ acrylic
glass
non-transparent
teak

Frame

anodised
coated
painted in all available RAL colors

Features & benefits

Additional features

motor cover
fixed panel
sun and insect screen (sunblind / flyscreen)

Product benefits

adaptable roof system
waterproof sealing
solid and tested construction
electrical operation
smooth sliding mechanism

Additional info

Complete water tightness – This roof is unique on the market due to its proven water tightness. Rainwater infiltration is not possible even during ventilation when the roof panel is in a sloping position.
Roof installation position – Possible installation in area 2 or 3, depending on the size of the roof.
The best roof dimension – The roof system is available in different dimensions from 1.5 m long and 1.8 m wide and can be adjusted with transom and color, all to fit perfectly into the design of your boat. In terms of style and functionality, it is best to choose the largest possible unit.
Roof control – The opening can be operated while the boat is in motion or at rest.
Hull thickness for roof installation – The roof can be installed on top or aligned with the surface regardless of the hull thickness and the installation of the system is similar to that of a standard opening.
Maintenance – Anodized or coated aluminum is an extremely durable material and does not require special maintenance but it needs to be cleaned regularly. Particular attention should be paid to the outer rails to ensure smooth movement, without jamming, and this includes the removal of dust and cluster. We recommend occasionally rinsing the roof with lukewarm water if necessary, adding a small amount of liquid soap which needs to be rinsed thoroughly.
Cleaning products to avoid – Do not use alkaline products that contain caustic soda, so be careful with glass cleaners that can also be alkaline and therefore corrosive. Do not use acidic products such as hydrochloric acid or products with fluorescent substances. Do not use rough brushes, steel wool, scrubbing products or sandpaper for cleaning.
Thickness – We offer high quality acrylic glass panes 15 mm thick or glass of different thicknesses
Radius – Max. length (L1), max. width (W1), flanging radius (R1), min. roof radius (R2), roof with transom 1,100 (L1) 1,100 (W1) 80 (R1) 10,000 (R2), roof with transom in opening direction 1,100 (L1), 1,800 (W1), 80 (R1), 10,000 ), roof with transom transverse to the opening direction 1,500 (L1), 1,100 (W1), 80 (R1), 10,000 (R2). All dimensions are expressed in mm and the minimum roof radius is 10,000 mm.
Finish – There is a choice between acrylic, glass and solid aluminum panes. Gray, bronze and green colors and a transparent window are available. Then, anodized or RAL coated aluminum available in all colors.
Flanging radius – The roof has a flanging radius of 80 mm.
