Description

Panda Marine Standard (PMS) diesel generators with dual circuit cooling (seawater cooling with heat exchanger) and "wet exhaust". 50 Hz 3000 rpm in three versions:

HP1 (single phase 230V)
HP 3 (three phase 3 x 400V)
DVS (combined windings - 230V and 400 V).

General Technical Data

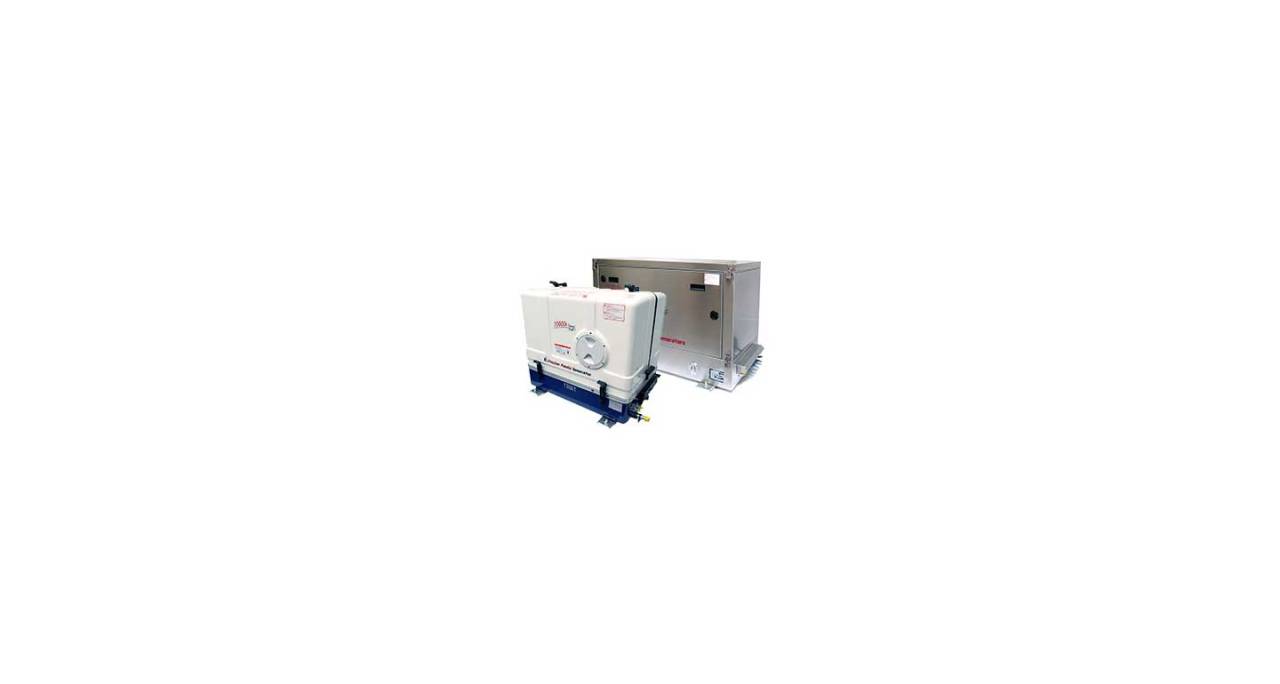

Model: Panda Panda 12000x-400V PMS

Generator Type: Generators with regulated speed (3000 rpm 50 Hz)

Brushless
No signal noise
No rotating coils or diodes
Precise control
High protection rating
Perfect sine wave
Short-circuit stability
Water-cooled
Overload protection

Generator Family: 12000x-400V

Generator Version: PMS

Suitable for internal installation
Low ambient temperatures
External control panel with cable
Dual circuit cooling

Article number: 0000169

Additional Features:

12V/10A Alternator for charging the starter battery

Area of Application: Marine Generator (M)
Frequency [Hz]: 50
Generator manufacturer: Fischer Panda GmbH
Isolation class of windings: H
Nominal Speed [rpm]: 3000 rpm
Voltage Regulation: xControl
Power rating factor Cos Pi: 0.85
Excitation by: MKP Capacitors

Electrical Alternator

Three Phase Version (Standard version)

Alternator Type: HP3
Nominal Voltage in Volt: 400
Nominal Performance in kW⁽¹⁾: 10.20
Nominal Performance in kVA⁽¹⁾: 12.0
Continuous Performance in kW⁽¹⁾: 9.2
Continuous Performance in kVA⁽¹⁾: 10.8
Number of Phases: 3
Frequency [Hz]: 50

(1) up to Panda 15000 / 12-4 cosPhi 0,85 for short take-off power to inductive loads, otherwise cosPhi1
1) from Panda 18 /17-4 on cosPhi 0,85 optional startup performance with compensation or starting current boost, otherwise cosPhi1

All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.
