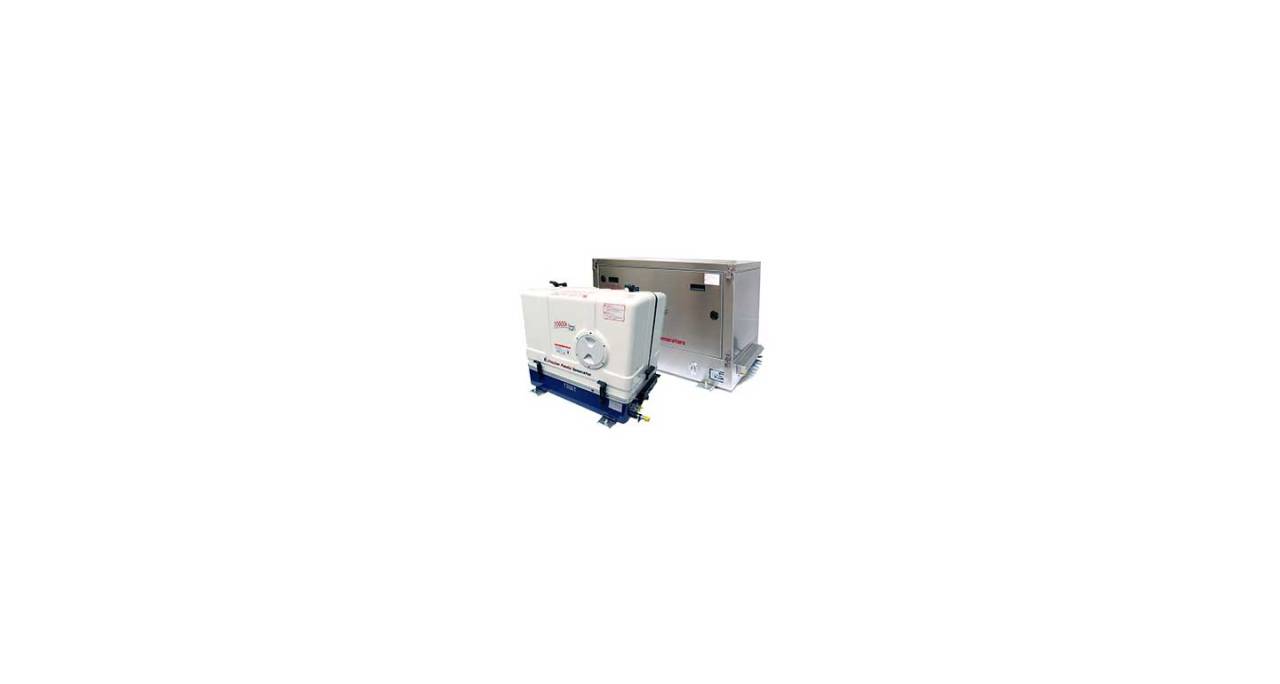

Panda 35-4x PMS

Generators

Description

AC Marine Generators 60 Hz / 1800 rpm (PMS)


General Technical Data

Model: Panda 35-4x PMS

Generator Type: Heavy Duty Line (1800 rpm / 60 Hz)

Generator Family: 35-4x

Generator Version: PMS

  • Suitable for internal installation
  • Low ambient temperatures
  • External control panel with cable
  • Dual circuit cooling

Article number: 0013331
Additional Features: 12V/10A Alternator for charging the starter battery

Area of Application: Marine Generator (M)
Frequency [Hz]: 60
Generator manufacturer: Fischer Panda GmbH
Isolation class of windings: H
Nominal Speed [rpm]: 1800 rpm
Voltage Regulation: xControl

Electrical Alternator

Single Phase Winding - Standard version

Alternator Type: HP1
Nominal Voltage in Volt: 120
Nominal Performance in kW(1): 31.00
Nominal Performance in kVA(1): 31.00
Continuous Performance in kW(1): 27.9
Continuous Performance in kVA(1): 27.9
Number of Phases: 1
Frequency [Hz]: 60

up to Panda 15000 / 12-4 cosPhi 0,85 for short take-off power to inductive loads, otherwise cosPhi1
from Panda 18 /17-4 on cosPhi 0,85 optional startup performance with compensation or starting current boost, otherwise cosPhi1

All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.

Engine Data

Engine Manufacturer: Hatz (HA)
Engine Type: 4H50TIC
No. Cylinders: 4
Displacement [cm3]: 1952
Starter System: 12V (24V Optional)

PDF download

DOWNLOAD PDF
